# Introduction to Machine Learning
### Garen Ikezian
# DFS and BFS
## 1. A presentation about the difference between breadth first search and depth first search on a binary tree
- Breadth first search (BFS) the traversal of the graph's levels by
exploring all the node's children before moving on to the neighboring
node in a graph from left to right. Depth first search (DFS) is the
traversal of nodes that prioritizes the furthest node before
backtracking to other unvisited nodes from left to right. BFS utilizes
the stack while DFS utilizes the queue to keep of unvisited nodes. They
are both useful algorithms but both have their pros and cons.
- The breadth first search algorithm is useful for garbage collection in
compilers while the depth first search algorithm is useful to create
games like maze or Sudoku.
- They are both important algorithms for computer science in general.
They are many different algorithms to learn but BFS and DFS are very
common. It will likely be asked in job interviews to demonstrate the
interviewee's problem solving ability.
## 2. An example of the DFS Algorithm Without Recursion
[**Code**](https://github.com/Garenium/Introduction-Machine-Learning/blob/main/DFS-NonRecursive/main.py)
- The linked code above is about finding the boolean value for True on a 2D grid.
We use a randomly generated 2D coordinate for the value True. There can
be only one True while the rest are all False. It looks something like
this:
```
False False False False
False False **True** False
```
We use a directional vector (two arrays with specified x and y values)
prioritizing depth over breadth as we traverse through the grid until we
find the coordinate for True. It uses a stack to emulate the DFS
algorithm by pushing unvisited nodes which are later popped when they
are visited.
- This is used as the basis for a variant of the game Snake. It
could also be used to create a Minesweeper game by having directional
arrays be ideally randomly generated to emulate that of machine
learning.
- It paves the way by helping provide a rudimentary sketch in
preparation for other 2D based AI applications. It is a good
prerequisite before learning about the OpenAI Frozen Lake gym
environment.
DFS **without** recursion's pseudo-code looks like this:
```python
func DFS_NO_REC(root)
# Initialize a stack with the root node to start DFS
STACK stack = [root]
# Initialize a set to keep track of visited nodes to avoid revisiting nodes
SET vis
# Loop until there are no more nodes in the stack
while (stack is not empty) do
# Pop the top node from the stack (LIFO) to process it
current_node = stack.pop()
# Check if the node has not been visited
if current_node not in vis then
# Mark the current node as visited by adding it to the vis set
vis.append(current_node)
end if
# Iterate over each child of the current node
for each child in current_node.children do
# If the child has not been visited, add it to the stack for future processing
if child not in vis then
stack.append(child)
end if
end for
end while
# Return the list of visited nodes
return vis
END DFS_NO_REC
```
## 3. An example of the DFS Algorithm with Recursion
[**Code**](https://github.com/Garenium/Introduction-Machine-Learning/blob/main/DFS-Recursive/main.py)
- The linked code above is very similar to the previous project. But the difference mostly
lies in the interactive side of things. It is a gambling game on a 2D grid
that first asks the user to type a random number from 1 to 9. The
program creates a random coordinate for the user's number and traverses
through the grid until the user's number is found. It returns the total
sum of the score based on the numbers traversed through the grid. The
grid in question may look like this:
```
1 3 9
3 **4** 8
6 3 9
```
Instead of relying on a stack to keep track, we use a call stack
traversing the grid recursively until the condition to find the user's
number is met.
- It can be used in many random-based applications. There can be a
terminal-based interactive game that involves decision making with each
number from 1 to 9 meaning something. It can also be used to emulate
dice.
- It is another reinterpretation of the DFS algorithm done differently.
It is more concise than the stack approach.
DFS **with** recursion's pseudo-code looks like:
```python
func DFS_REC(root, visited)
# Add the current node to the visited set to mark it as visited
visited.append(root)
# Visit all unvisited child nodes recursively
for child in root.children
# If the child has not been visited yet
if child not in visited
# Recursively call DFS on the unvisited child
DFS_REC(child, visited)
end if
end for
END DFS_REC
```
## 4. An example of the BFS Algorithm
[**Code**](https://github.com/Garenium/Introduction-Machine-Learning/blob/main/BFS/main.py)
- The linked code above is about finding an English word in a JSON dictionary.
It uses a queue until we return a valid word found in the dictionary.
Misspellings are taken into consideration as it iterates the English
alphabet until a valid word is found. BFS is emulated by having each
word have its own valid child variants (In the case of cat, its valid
variants from the dictionary are bat, bag, and cat. Together they are
level one). We proceed to generate variants of each word respectively.
The following picture provides a general overview being represented as a
tree.
- It can be extended to other Latin-based languages like French or
Malay. It can be a good application to find the distance between
different words in a dictionary.
- The Breadth first search teaches a different to traverse graphs aside
from depth first search.
BFS's pseudo-code looks like this:
```python
func BFS(root)
# Initialize a queue with the root node as the starting point
QUEUE queue = root
# Initialize a set to keep track of visited nodes to avoid cycles
SET vis
# Loop as long as there are nodes in the queue
while (queue is not empty) do
# Dequeue the first node (FIFO) to process it
current_node = queue.pop()
# Mark the current node as visited if it hasn't been visited already
if current_node not in vis
vis.append(current_node)
end if
# Iterate through each child of the current node
for child in current_node.children
# If the child node has not been visited, add it to the queue
if child is not in vis
queue.append(child)
end if
end for
end while
end BFS
```
## 5. Explaining the A\* Star Search Algorithm
[Code](https://github.com/Garenium/Introduction-Machine-Learning/blob/main/AStar/my_a_star.py)
- The A-star algorithm can be like breadth
first search but with distance and/or weight in mind. Instead of a
queue, it is the priority queue that is relied upon. It is made to find
the shortest path from point A to point B.
- It uses the following equation:
$$
f(n) = g(n) + h(n)
$$
Where:
$f$ is the *total* cost --- $g$ is the distance (or cost) --- $h$ is the heuristic value
- It is an ideal algorithm to create a GPS system. Anything that
involves cartographic solutions or a system that is related to geography
or geology may require such algorithm.
- The A\* Star Search Algorithm provides a good sense of how
destinations or vantage points are calculated and resolved. It is a more
practical approach against breadth first search.
The A* pseudo-code looks like this:
```python
func A_star(start, goal)
# Initialize open list (priority queue) and closed list (set)
OPEN_LIST = priority queue with start node, sorted by f value
CLOSED_LIST = empty set
# Initialize g and f values for the start node
g(start) = 0
f(start) = heuristic(start, goal)
# Initialize a map to keep track of the parent of each node
PARENT = empty map
# Loop until the open list is empty
while OPEN_LIST is not empty do
# Get the node with the lowest f value from the open list
current_node = OPEN_LIST.pop()
# If the current node is the goal, reconstruct the path and return it
if current_node == goal then
return reconstruct_path(PARENT, goal)
# Add the current node to the closed list
CLOSED_LIST.add(current_node)
# For each neighbor of the current node
for each neighbor in current_node.neighbors do
# If the neighbor is in the closed list, skip it
if neighbor in CLOSED_LIST then
continue
# Calculate tentative g value for the neighbor
tentative_g = g(current_node) + cost(current_node, neighbor)
# If the neighbor is not in the open list or the new tentative g value is better
if neighbor not in OPEN_LIST or tentative_g < g(neighbor) then
# Update g and f values for the neighbor
g(neighbor) = tentative_g
f(neighbor) = g(neighbor) + heuristic(neighbor, goal)
# Set the parent of the neighbor to the current node
PARENT[neighbor] = current_node
# Add the neighbor to the open list if it's not already in it
if neighbor not in OPEN_LIST then
OPEN_LIST.push(neighbor, f(neighbor))
end if
end for
end while
# Return failure if no path is found
return failure
end A_star
# Helper function to reconstruct the path from start to goal
func reconstruct_path(PARENT, goal)
path = empty list
current_node = goal
while current_node in PARENT do
path.append(current_node)
current_node = PARENT[current_node]
end while
reverse(path)
return path
end reconstruct_path
```
# Markov Decision Process (MDP) and Q-Learning
## 6. Explaining the Markov Decision Making Process
- The Markov framework is not the same as machine learning as
it is a mathematical framework that enables computers to make
decisions based on probabilities. It relies on 4 variables with
Bellman's equation in mind. We use the equation to calculate the
next possible action for the agent.
- Its outcomes are partly random and partly under the control of the decision
maker. It provides a mathematical model for decision-making under uncertainty.
- Any agent or model can be used to emulate the Markov Decision Making
Process. It loops until it finds the best possible solution or value to
do something.
- It helps to teach the idea of the meaning behind word "agent", "cost",
and "action space", and "observation space". Since AI heavily relies on
mathematics, it can indirectly teach calculus as a bonus.
### 6.1 Bellman's Equation
It relies on 4 variables:
$$
(S,A,P_a,R_a)
$$
Where:
- $S$ is the set of states called the state space. It is the
"everything" that surrounds the agent.
- $A$ is the set of actions called the action space. It is the
set of possible decisions that the agent can make.
- $P_a$ is the probability distribution of the next state given the
current state and action. It is the transition model.
- $R_a$ is the immediate reward received after transitioning from
the current state to the next state by taking action 'a'. It is the
reward function.

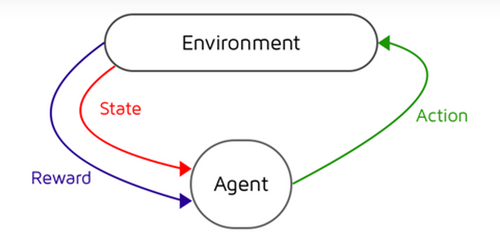

We rely on these four parameters to create a model like so:
We then use Bellman's optimality equation in our code:
$$
V_{i+1}(s) := \max_a \bigg\{ \sum_{s'} P_a(s, s')(R_a(s, s') + \gamma V_i(s')) \bigg\}
$$
With this equation, we keep looping, calculating and finding the most
optimal value for the agent to commit an action. This is called value iteration.
Value iteration involves iteratively estimating the value of
each state based on the rewards associated with taking different actions
from that state. This allows us to find the best action to take in each
state and ultimately determine the optimal policy. We iterate through
all the states and update our estimates until we converge on the best
policy.
## 7. Explaining the implementation of Markov Decision Making Process
The [Frozen Lake OpenAI](https://www.gymlibrary.dev/environments/toy_text/frozen_lake/#frozen-lake) gym is a good example.
**Implementation**: [Google Colab](https://colab.research.google.com/drive/1P7gmy6F08SGwQaSr_f4HJH2BrDPSSijQ?authuser=1) or [Github](https://github.com/Garenium/Introduction-Machine-Learning/blob/main/Markov-FrozenLake/Frozen_Lake.ipynb)
- By implementing the Bellman's equation as a Python function, the
program will loop all of the available states and then calculate new
values that will be compared against old values. It will keep looping
until the difference between the old values and the new values will no longer
be significant.
**Note**: It is just like finding the derivative of
a function. The closer the derivative, the less significant it becomes.
```python
def value_iteration(env, max_iterations=100000, gamma=0.9):
"""Determines how "good" any given state is to be in for our actor.
Returns: an array with a value for each state, and another array for the policy.
The greater a given value in the first array, the "better" the state.
"""
# An array where each item represents how "good" a state is to be in
state_func = [0] * env.nS
# We'll update the state function gradually and use this copy to do it
new_state_func = state_func.copy()
# Our policy will contain the best action for any given state
# Do this after the initial value iteration
policy = [0] * env.nS
# Prevent looping infinitely if our algorithm doesn't converge
for i in range(max_iterations):
# Loop through all possible states
#(n is the *S*tates. the *n*umber of *S*tates)
for state in range(env.nS):
# For each state we find the best possible action to take in that state
best_state_action_val = 0
# Do this after the initial value iteration
best_action = 0
# So we try all the actions
for action in range(env.nA):
state_action_val = calc_action_value(state, action, state_func, gamma)
# After calculating the goodness of this action, we keep it only if it is
# better than the previous best
if state_action_val > best_state_action_val:
best_state_action_val = state_action_val
# Do this after the initial value iteration
best_action = action
# After calculating the best possible action for this state, we save how
# "good" the best action is for the state...
new_state_func[state] = best_state_action_val
# And we remember the action for later
# Do this after the initial value iteration
policy[state] = best_action
# After 1000 iterations, if the state function hasn't improved very much
# we stop trying to improve it
if i > 1000 and sum(state_func) - sum(new_state_func) < 1e-04:
break
# Otherwise we update the state function to the newly improved version
state_func = new_state_func.copy()
# After figuring out the goodness of each state and the best actions we return them
return state_func, policy
state_func, policy = value_iteration(env)
print(state_func)
print(policy)
print("Size of state_func", len(state_func))
print("Size of policy", len(policy))
```
- We then create a policy (or different
possible outcomes) based on the new values for our agent to take a
course of action through trial and error.
```python
def get_score(env, policy, episodes=1000):
misses = 0
steps_list = []
best_episode = []
# We try to navigate the lake `episodes` number of times
# "In other words, we're 'playing' this game episode number of times"
for _ in range(episodes):
# We reset the environment so we're back at the start, and store the current
# state in `observation`
observation = env.reset()
episode = []
steps = 0
while True:
# We use our policy to determine the best action based on the current state
#"Given that I'm observing, what should I do?"
action = policy[observation]
# We tell the agent to take the action and we retrieve the new state,
# the reward for moving to that state, and also if we are done or not
observation, reward, done, _ = env.step(action)
# We'll save a string representation of the environment so we can watch
# it later
episode.append(env.render(mode='ansi'))
steps += 1
# If we finished and reached the goal
if done and reward == 1:
steps_list.append(steps)
# We save this episode if we reached the goal in fewer steps
if len(best_episode) == 0 \
or len(episode) < len(best_episode):
best_episode = episode
break
# If we finished but fell in a hole
elif done and reward == 0:
misses += 1
break
print('----------------------------------------------')
print('You took an average of {:.0f} steps to get the frisbee'.format(
statistics.mean(steps_list)))
print('And you fell in the hole {:.2f}% of the time'.format(
(misses / episodes) * 100))
print('----------------------------------------------')
return best_episode
best_episode = get_score(env, policy)
```
- It demonstrates a solid grasp of how the Markov Decision Making
Process works. It is a solid impetus for a mathematical way of thinking.
## 8. Explaining the Q-Learning Reinforcement Learning
- We represent Q-Learning as a table called Q-Table.
- It is a table of action columns and state rows. Each state corresponding to a particular
action can have a good or a bad "mark". We can still use Bellman's
equation to help make such values.
- It is used on any agent just like in the Markov Decision Process.
Unlike Markov Decision Making, it is not "pseudo-learning". The Q-table
approach will be considered when the agent requires actual self-teaching
unlike Markov's where probabilities don't deliver too much semantic
significance reflecting on the environment the agent is in.
- It provides a new perspective to develop a reinforcement learning
application.
### 8.1 The Q-table
It is one type of models to make a reinforcement learning program possible. We
rely on a table with "grades" for every action for every state.
Every row is a state and every column (for this table, after first
column) is an action. In the table, the possible grades are -10 meaning
horrible, 5 is Good, while 10 is excellent.
Student | Listens | Writes | Interrupts
---------------|---------|---------|---------------
Not Available | -10 | -10 | -10
Available | 10 | 5 | -10
The Algorithm looks like
$Q(s)$: Returns the value of all actions for state s
$Q(s,a)$: Returns the value of the action a for state s
1\. The agent goes through episodes/trials
2\. Agent chooses the best value/best value:
$$
S \rightarrow max_a\{Q(s,a)\}=a\rightarrow S'
$$
3\. Update the cell: The reward tells us whether is was a good or a bad
action (-10, 10, 5 etc.).
$$
Q(s, a)=r+\gamma \cdot max(Q(s'))
$$
## 9. Explaining the Q-Table Implementation
The [Taxi Driver OpenAI](https://www.gymlibrary.dev/environments/toy_text/taxi/) gym is a good example.
**Implementation**: [Google Colab](https://colab.research.google.com/drive/1KpBqnnE6q75VXo1cCQseeG-vWCSaUWRk) or [Github](https://github.com/Garenium/Introduction-Machine-Learning/blob/main/QLearning-Taxi/Taxi_Driver.ipynb)
- Q-Learning helps the program generate a table of values for every state and action.
In Python, we can use a table as a collection of tuples (state, action) to keep track (as from the example `Q = np.zeros((env.nS, env.nA))`, where Q holds the state `nS` and action `nA`).
- The Q-Learning way relies on a while loop until the agent reaches the
destination. For every trial, the agent finds the best value with
discount factor (represented as a gamma $\gamma$) as a coefficient to emulate that of the agent making
progress. Through trial and error, the best possible moves are appended
to the list.
